Electric Wire Rope Hoists are rotating devices that raise and lowers large objects using a wire rope. The rope, which is wound on a grooved drum in a single layer, is guided by a ring over the drum.
The electric rope hoist usually can lift weights from 0.5 T to 100 Tons with ease. The versatile options available with the us, give more reliability, and henceforth we have emerged as one of the most trusted suppliers of electric wire rope hoists.
-

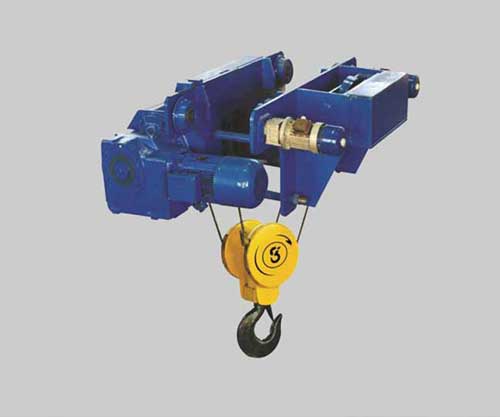

Electric Wire Rope Hoist
MODEL 052 104 204 304 504 604 7504 1004 1204 1504 SAFE WORKING LOAD (KG) 500 1000 2000 3000 5000 6000 7500 10000 12000 15000 LIFT (METERS) 8 5.5 8 8 8 8 8 8 8 8 NO OF FALLS 2 4 4 4 4 4 4 4 4 4 ROPE DIAMETER IN MM (IWRC 6X36 Con) 6 6 8 8 10 12 12 14 16 18 HOISTING SPEED (M/Min) 3 3 3 3 4 3 3 3 3 3 HOISTING MOTOR (HP)
HOISTING MOTOR (KW)0.75
0.551.00
0.752.00
1.502.94
2.205.36
4.007.37
5.507.37
5.5010.00
7.5012.33
9.2014.75
11.00CROSS TRAVEL SPEED (M/Min) 15 15 15 15 15 15 15 15 15 15 CROSS TRAVEL MOTOR (HP)
CROSS TRAVEL MOTOR (KW)0.16
0.120.16
0.120.24X2
0.18X20.24X2
0.18X20.33X2
0.25X20.33X2
0.25X20.5X2
0.37X20.5X2
0.37X20.73X2
0.55X21X2

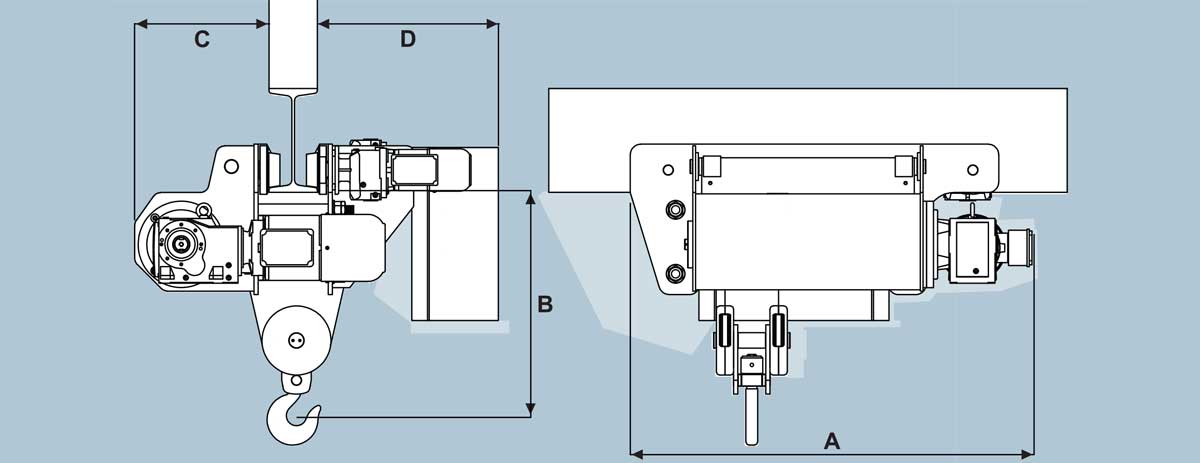

0.75X2HOIST DIMENSION IN MM A 770 920 1162 1176 1197 1452 1452 1491 1850 1850 B 500 550 650 650 800 950 950 1250 1350 1500 C 250 250 390 390 455 520 520 630 690 710 D 365 365 525 525 525 560 560 630 690 740 APPROXIMATE WEIGHT (KG) 190 225 334 345 490 560 691 1075 1340 1450 NOTE- Please specify girder size at the time when you are placing order. Mentioned details are for standard models. Higher lifts & speeds are possible. Because of continuous improvement process in design and manufacturing overall dimensions may change without notice. All rights are reserve with Sahil Industries.
Standard Features
Sahil Electric Wire Rope Hoists
- Compact Design
- Light Weight
- Easy To Move Manually
- Low Headroom
- Trolley Adjustable For Various I-Beam Sizes Or Fabricated Box
- Bottom Hook Block Tested
- 200% Of Full Load
- Hardened And Ground Gear Box
- Vfd For Jerk-Less And Smooth Operations
- Low Voltage Control System Of 110v That Minimizes Electrical Hazards For The Operator
- Power Saving Design
- Rope Guide Special Design For Smooth And Proper Winding Of Rope
Extra Features
- Lifts Higher Than Standard Models
- Special Trolleys - Like Swivel Articulated Type
- Limit Switches - Gravity Type
- Cross Travel Limit Switch, Mechanical Limit Switches
- Microspeed For Hoisting And Cross Travel-Trough Vfd
- Radio Remote Control
- Heat Shield
- Control Panel-Over Load Relay
- Single Phase Preventer, Mechanical Interlock Contactors Note - Extra Features Will Be Applicable For Additional Cost.
